DEBIX Infinity Industrial Single Board Computer

DEBIX Infinity Industrial Single Board Computer [Coming Soon]

DEBIX Infinity

DEBIX Infinity packs a serious punch with its i.MX 8M Plus Quad Lite processor, boasting quad-core ARM Cortex-A53 humming at 1.6 GHz alongside a dedicated Cortex-M7 at 800 MHz.

Product description
Specifications

BUY NOW

Overview

DEBIX Infinity packs a punch with its i.MX 8M Plus Quad Lite, quad-core ARM Cortex-A53 at 1.6 GHz blazing through demanding tasks, while a dedicated Cortex-M7 at 800 MHz handles real-time operations. Up to 8GB LPDDR4 memory and 256GB eMMC storage ensure smooth operation and secure data storage. Connect seamlessly with dual RJ45s, USB 3.0, and a 40-pin header. Built for industrial environments (-20°C to 70°C or -40℃ to 85℃), DEBIX Infinity delivers rock-solid performance. No NPU, just pure processing muscle for your industrial automation needs. Plus, expand your reach via Gigabit Ethernet, Wi-Fi, BT5.2, and more.

Compatibility
DEBIX Infinity effortlessly works with your existing DEBIX I/O board, 4G board, LoRa board, SBC PoE module, DEBIX Camera modules and Okdo 5"/7"/8"/10.1" LCD monitors.
Main Features

• Performance: Powerful quad-core Arm® Cortex®-A53 CPU at 1.6GHz indicates sufficient processing power for demanding industrial applications.

• Real-time control: Cortex-M7 core and robust control network interfaces like dual CAN FD and dual Gigabit Ethernet with one TSN support make it suitable for real-time applications with strict timing requirements.

• Industrial reliability: Designed for critical environment condition and temperature change, the wide CPU temperature range -40°C to 105°C make it can be used in critical industrial environment, transportation and industry control etc.

• Rich Connectivity: A comprehensive range of connectivity options, including Gigabit Ethernet, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.2, high-speed USB 3.0, and PCIe support. This allows for easy connection and control of various industrial peripherals.

• Complete Software Support: Includes Android 11/ Yocto-L5.10.72_2.2.0/ Ubuntu 22.04/ Windows 10 IoT Enterprise operating system and basic software for fast and direct applications.

Specification

System
CPU	NXP i.MX 8M Plus Quad Lite, MIMX8ML4CVNKZAB, 4 x Cortex-A53 1.6GHz
Memory	2GB LPDDR4 (4GB/8GB optional)
Storage	Micro S D card (On boar d 8GB/16GB/32GB/64GB/128GB/256GB eMMC optional)
Operating System	Android 11, Yocto-L5.10.72_2.2.0, Ubuntu 22.04, Windows 10 IoT Enterprise Note: 4GB/8GB LPDDR4 supports Windows 10 IoT, recommend 8GB version.

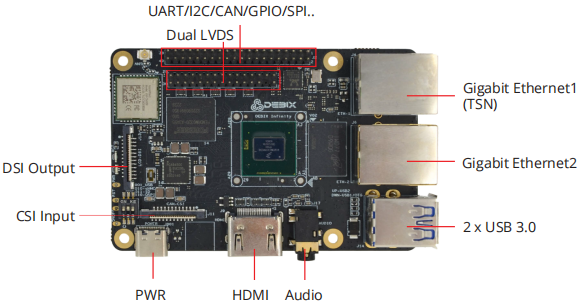

I/O Interfaces
Gigabit Network	1 x RJ45, support POE power supply (need POE power device module） 1 x RJ45 (POE power supply not supported)
WIFI & BT	NXP 88W8987 SoC: 2.4GHz & 5GHz Wi-Fi + BT 5.2
USB	2 x USB 3.0 Host Type-A (DWN_USB1 can be configured as OTG via software)
Audio	1 x 3.5mm Headphone and Mic combo port
HDMI	1 x HDMI OUT
Expansion
40-Pin Double-Row Headers	(1) 3 x UART, 2 x I2C, 2 x SPI, 2x CAN, 6 x GPIO for default, can be reused as I2S, PWM, SPDIF and GPIO through software configuration. (2) 5V power supply, system reset, ON/OFF
LVDS	1 x LVDS, single & dual channel 8bit, 2 x 15-Pin double-row headers
MIPI CSI	1 x MIPI CSI, support 4-lane, 24Pin 0.5mm Pitch FPC socket
MIPI DSI	1 x MIPI DSI, support 4-lane, 24Pin 0.5mm Pitch FPC socket
PCIe	1 x PCIe, support PCIe x1, 19Pin 0.3mm Pitch FPC socket
Slot	1 x Micro SD slot
Power Supply
Power Supply	DC 5V/3A Type-C
Mechanical & Environmental

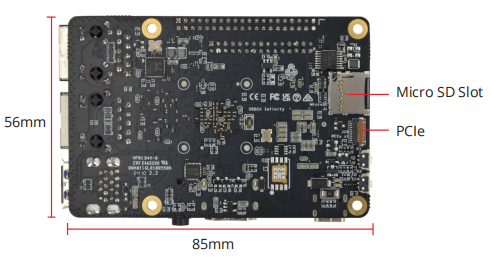

Size	85.0 x 56.0mm
Operating Temp.	-20℃ to 70℃ (-40℃ to 85℃ optional)

Documents

DEBIX Infinity Product Brief

DEBIX Infinity User Guide
