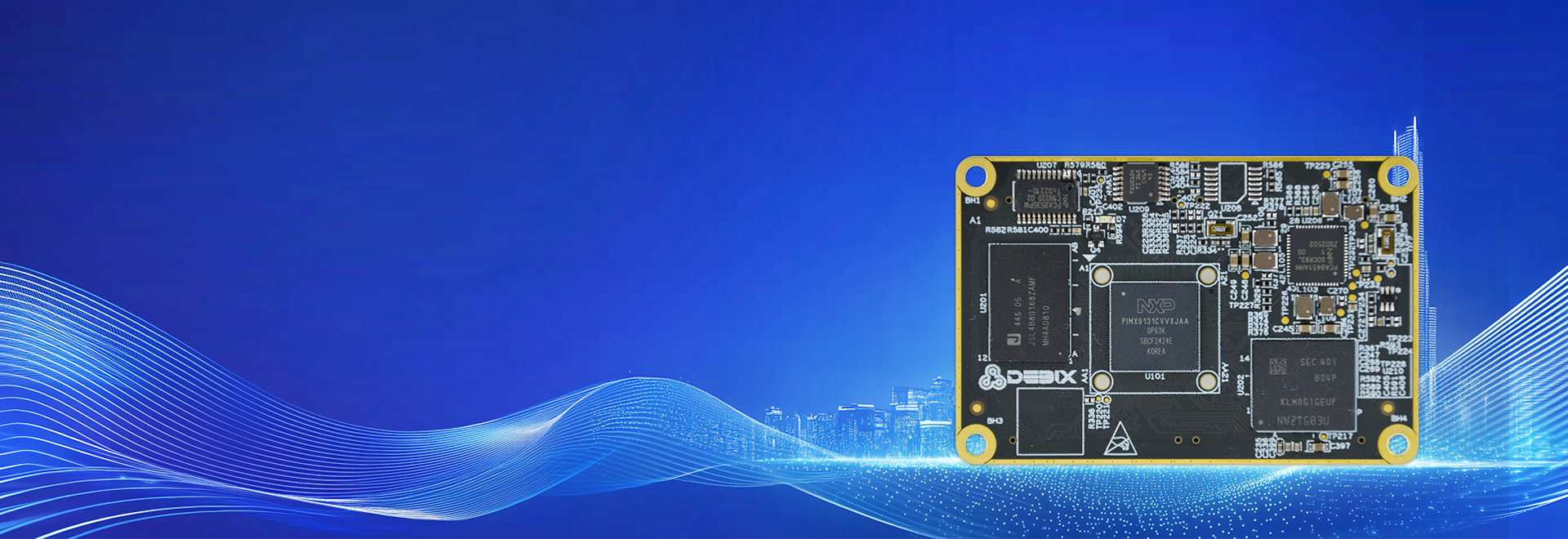

DEBIX SOM C i.MX 91 Core Board
DEBIX SOM C
DEBIX i.MX 91 Industrial-grade System-on-module
-
Overview
DEBIX SOM C is a cost-optimized System-on-Module based on the NXP i.MX 91 processor, featuring a single-core ARM Cortex-A55 CPU (up to 1.4GHz) and optimized for lightweight embedded systems. By integrating the processor, memory and storage into a compact module, it significantly simplifies carrier board development and accelerates deployment in industrial control, IoT edge devices, smart home and other low-power scenarios.
Compliance
CE, FCC, UKCA, RoHs, RCM, PSE
-
Main Features• Industrial-grade Reliability: Operates in extreme environments from -40°C~85°C, ideal for harsh industrial use cases.
• Flexible System Integration: Standardized board-to-board connectors accelerate carrier board development.
• Low Power Operation: Single-core Cortex-A55 (1.4GHz) focuses on essential tasks, eliminating unnecessary hardware complexity and power waste. Maximum power consumption as low as 1.24W.
Specification
|
System |
|
|
CPU |
NXP i.MX 9131, 1 x Cortex-A55 @1.4GHz. The maximum power consumption is 1.24W (i.MX 91 series CPU optional) |
|
Memory |
1GB LPDDR4 (2GB optional) |
|
Storage |
Onboard 8GB eMMC (16GB/32GB/64GB/128GB/256GB optional) |
|
OS |
Yocto, Zephyr |
|
Internal I/O |
|
|
Gigabit Ethernet |
Up to 2 x Independent MAC Gigabit Ethernet port |
|
Display |
1 x 24-bit-per-pixel parallel RGB, supports up to 1366x768@60Hz or 1280x800@60Hz |
|
Camera |
1 x 8-bit parallel CSI |
|
Audio |
Up to 3 x SAI (synchronous audio interface), 1 x SPDIF OUT/IN, 1 x PDM |
|
USB |
2 x USB 2.0 |
|
UART |
Up to 8 x UART |
|
I2C |
Up to 8 x I2C |
|
SDIO |
Up to 3 x SDIO3.0 |
|
CAN FD |
Up to 2 x CAN FD |
|
SPI |
Up to 8 x SPI |
|
ADC |
Up to 1 x 12-bit ADC (4-channel) |
|
Power Supply |
|
|
Power Input |
DC 3.5V~5V/1A |
|
Operating Temperature |
|
|
Temp. Range |
-40°C~85°C for default, -20°C~70°C optional |
|
Mechanical & Environmental |
|
|

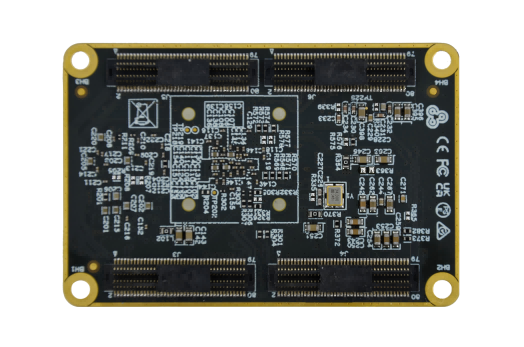

Connector |
4 x x 2*40pin/0.5mm pitch board-to-board connector (PN: BB51024A-R80-10-32), matching sockets of various heights |
|

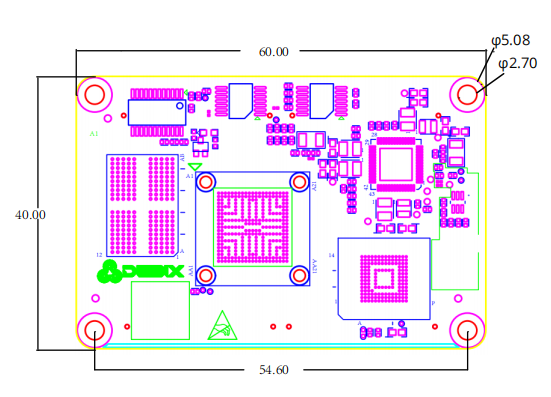

Dimension |
60mm(L) x 40mm(W) x 5.6mm(H) (±0.5mm) |
|
Net Weight |
11g (±0.5g) |
|
Gross Weight |
23g (±0.5g) |
